Description
The German Plus satellite engine is the highest quality engine available in the world market, which is designed in Germany and produced in South Korea. This motor is designed and manufactured with a strong tuner with automatic calibration and smart board with 4k technology and the speed is 68%, which is more than other rotating engine. The new generation of SMD 2024 ICs is used in the production of this engine, which is compatible with all satellite receivers. This product has recently been launched in the global market in 2024.

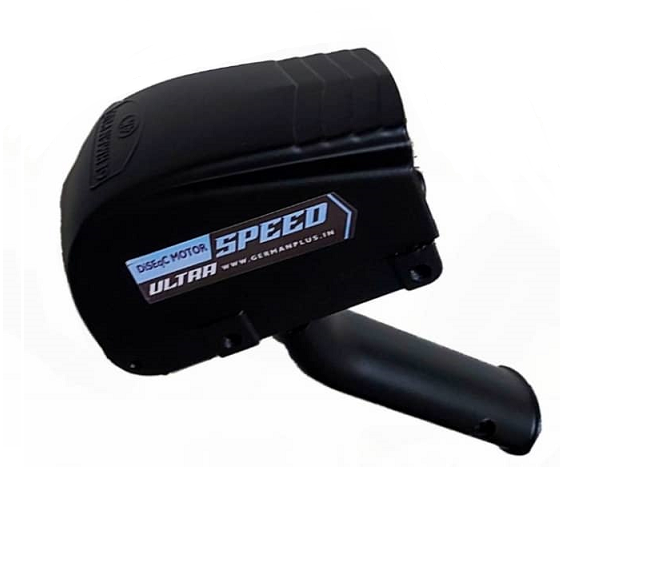

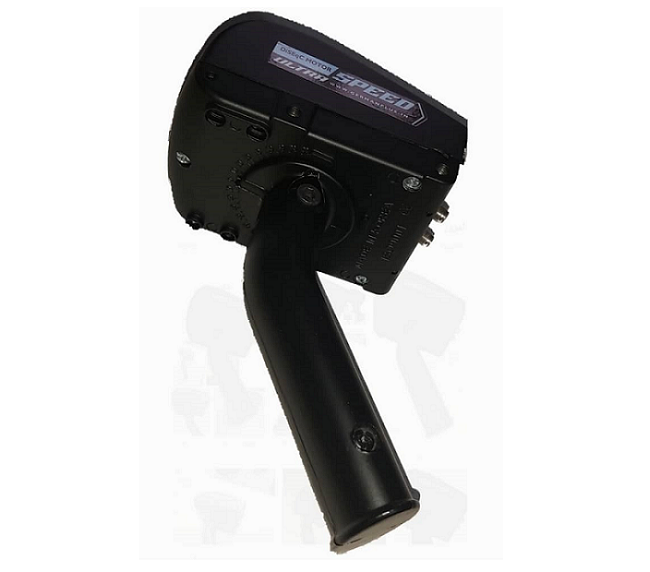

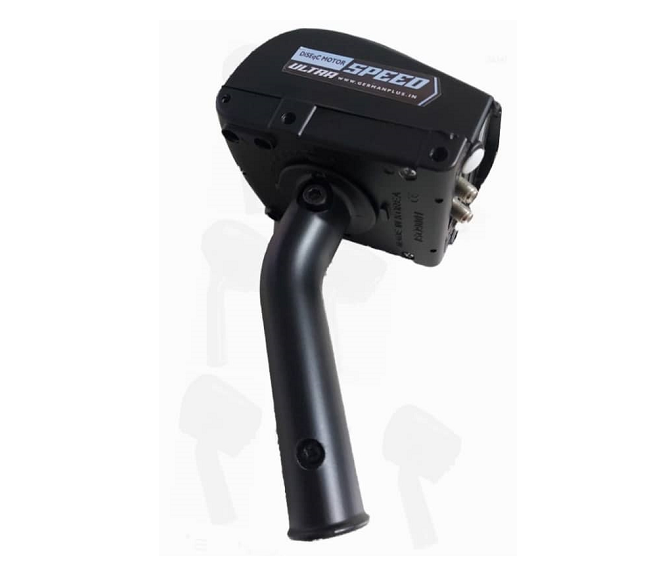

FASTEST HH MOTOR TILL NOW DESIGNEDwith Armature 6800 germanplus 4k HH motor germanplus is a powerful motor designed for rotating a satellite dish. The satellite Receiver has full automatic control using the DiSEqC 1.2, USALS and “Go To X” commands to operate this motor.THIS HH MOTOR IS FASTEST HH MOTOR TILL NOW DESIGNED.
Brand: germanplus 4k
Similar Fake: No
Availability: In Production

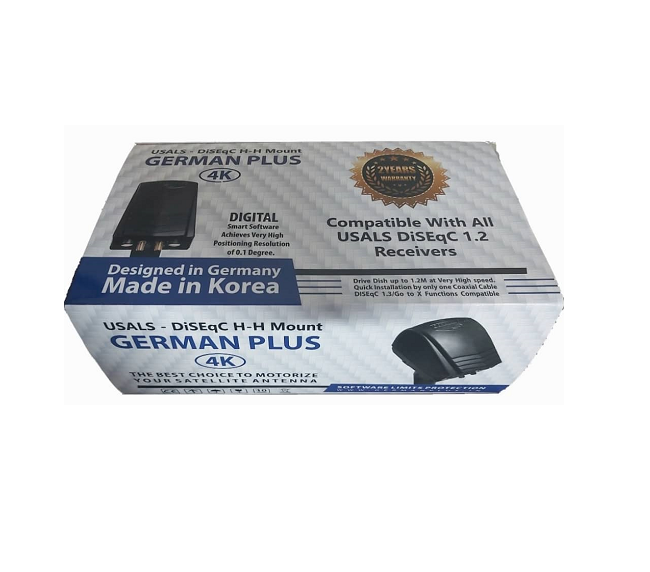

note :In package of This hh motor is not available LNB.
Once the satellite positions have been programmed in the system, the motor returns the dish to exactly the correct location when you switch channels
The principal of a motorized system is that the dish moves from east to west to track the satellites positioned along the Clarke belt. It utilizes a data stream passed up the LNB co-axial lead to the mount. Only one co-axial cable (the one that goes to the LNBF) is needed for installation
Features:
| LED function | High Speed |
| Anti-rust | Ultra Low Noise |
| Auto-adjust Clearance | Zero Backlash Design |
Technical data:
| Operating protocol | DiSEqC TM 1.2/USALS compatible level and the ‘GoToX’ function |
| Horizontal Rotation | 95° (99° max.) |
| Inclination (motor elevation) | 75° |
| Maximum antenna diameter | 150 cm Aluminum or 120 cm Steel |
| Programmable positions available | 64 satellites |
| Maximum antenna mass gravity point | 20 kg , when rotating the dish around the centre-of gravity |
| Antenna support length | 150 mm |
| Bent motor pole diameter | 42 mm |
| Rotation speed (unloaded) | 2.6°/s (H-18V) 2.1°/s (V-14V) ±25% |
| Rotation speed (with a 90-cm dish) | 2.4°/s (H-18V) 1.9°/s (V-14V) ±25% |
| Powered via a coaxial cable | 13 / 18 VDC |
| Power consumption in stand-by mode | 15 mA ±25% |
| Power consumption in operating mode (with a 90-cm dish) | 95-150 mA ±25% |
| Starting movement consumption (90 ms) | 350 mA |
| Operating temperature | -30°C to +75°C |
| Operating humidity | 35% to 100% |
| Connectors F type | 7 mm |
| Connection | coaxial cable with an impedance of 75 F |
| Connection cable up to 30 | inner conductor CU ø 1.02 mm R=22 F/km |
| Connection cable up to 100m | inner conductor CU ø 1.13 mm R=18 F/km |
| EAST-WEST limits | hardware fixed, no programmable limit |
| Fine tuning step | 0.36° |
| Weight with box | 2.8 kg |
| Maximum permissible wind speed for a 90-cm/120-cm150-cm dish | 150 km/h/90 km/h70 km/h (km per hour) |
| Maximum permissible torque during rotation | 17 Nm |
| Maximum permissible torque on idle | 170 Nm |
| Control buttons | two (west-call and east-store) |
| Dimensions of packed into box | 295 (L) x 132 (W) x 155 (H) mm |
| Speed | 3.8°/sec (at 13V):4.7°/sec(at 18V) |
